Self-Integration of Sensor Spots in Shake Flasks

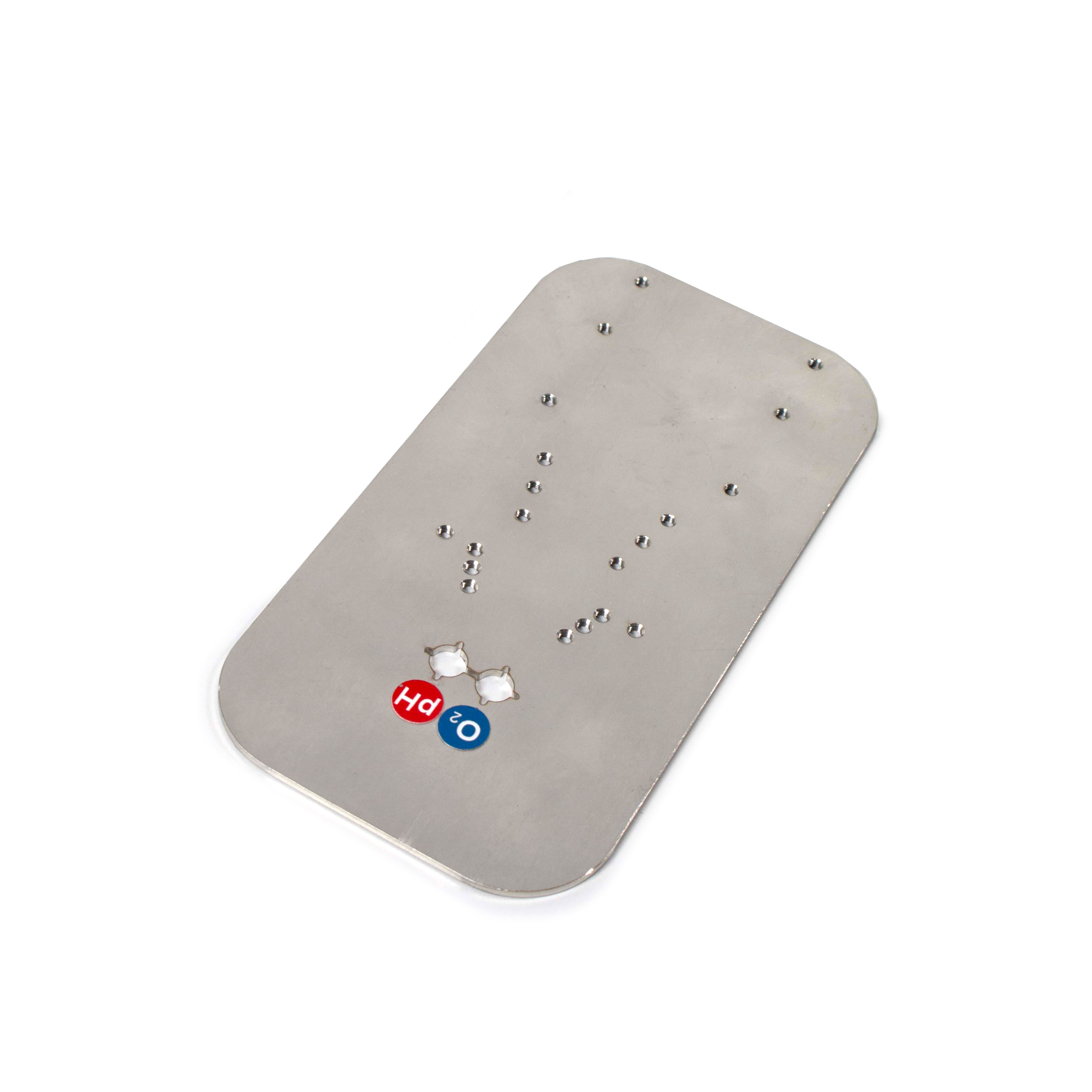

Mounting Plate MP-SP-SF

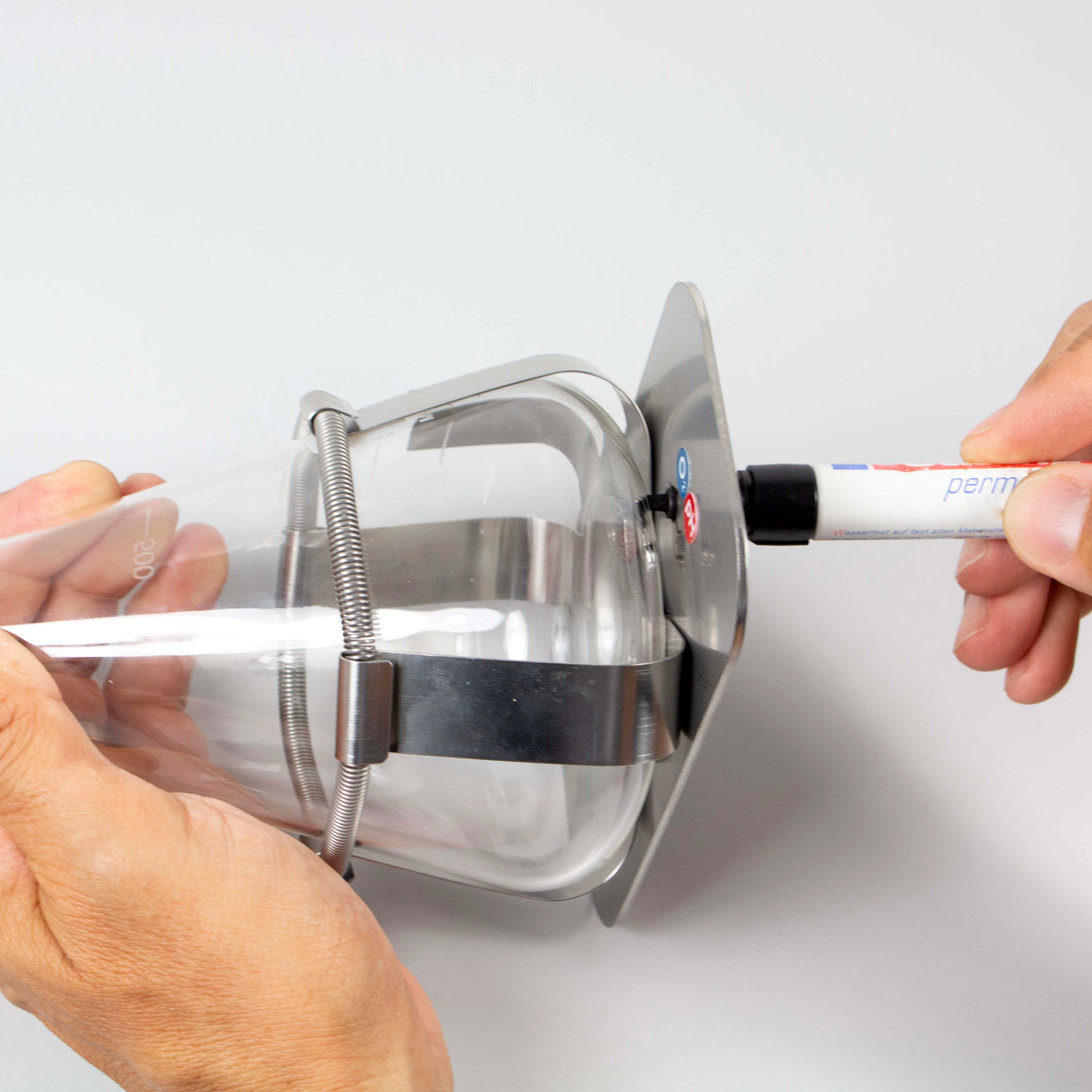

The Mounting Plate MP-SP-SF allows to determine sensor positions in shake flasks for sensor spot integration onsite and read out with the SFR or SFR vario. A clamp matching the shake flask size can be mounted on this plate. The exact position for sensor spot integration is indicated by two holes in the mounting plate. A pen can be used to mark the sensor integration positions on the flask from below. The mounting plate fits every clamp / flask size compatible with the SFR or SFR vario.
- For sensor spot integration onsite
- Exact sensor positioning in shake flasks
- Easy use
Technical
| Specifications | |
|---|---|

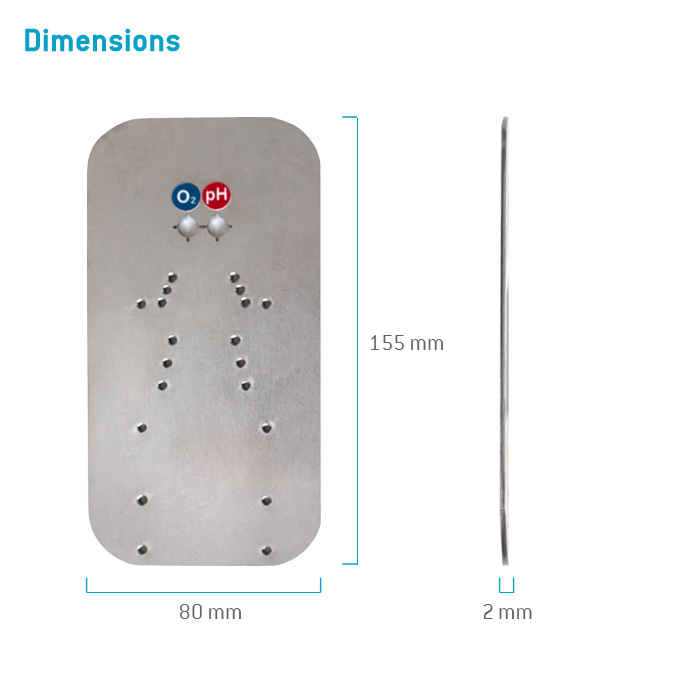

| Dimensions | 155 mm x 80 mm x 2 mm |
| Weight | 185 g |
